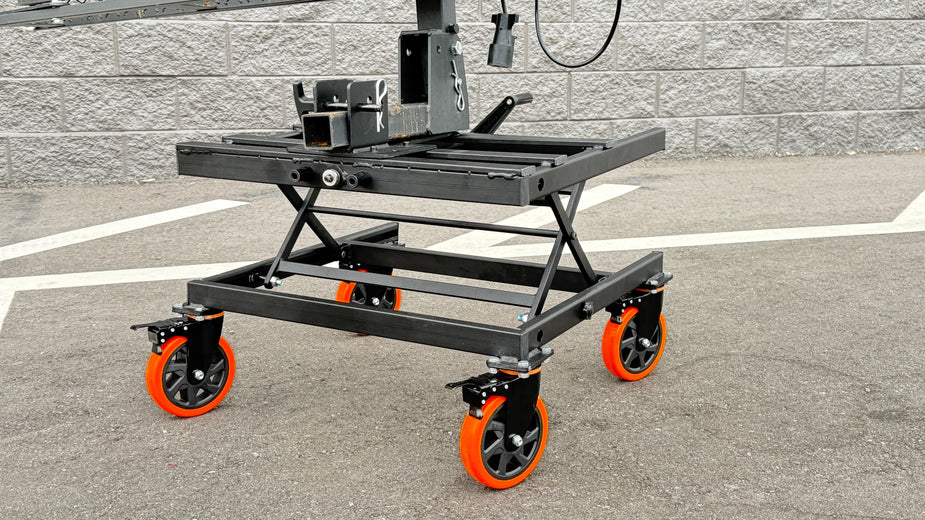

Heavy hitch racks can be hard to lift, awkward to maneuver, and frustrating to line up with your vehicle’s receiver. The Hitch Rack Pro Rack Lift gives you a much easier way to move, position, install, remove, and store a heavy bike or trike rack.

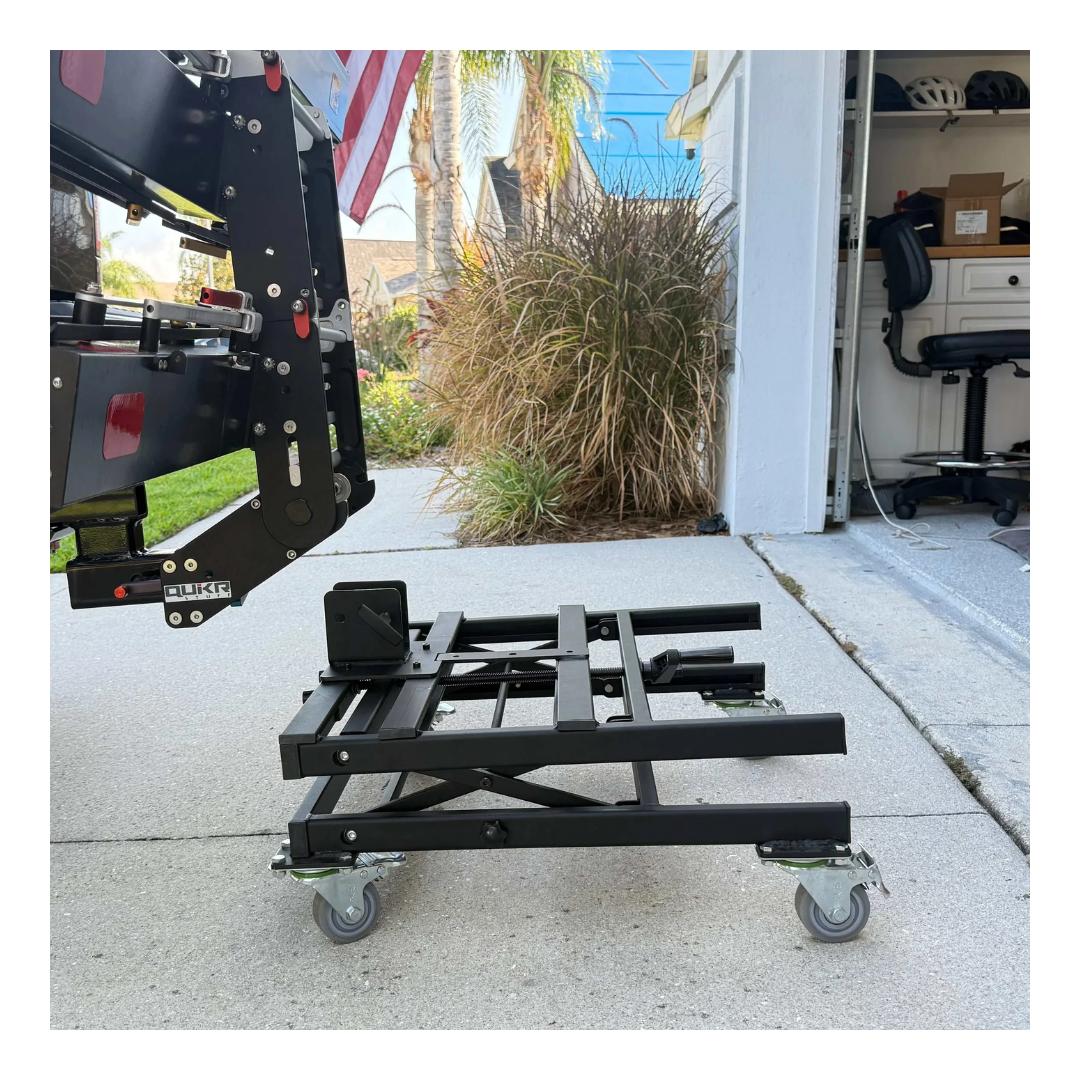

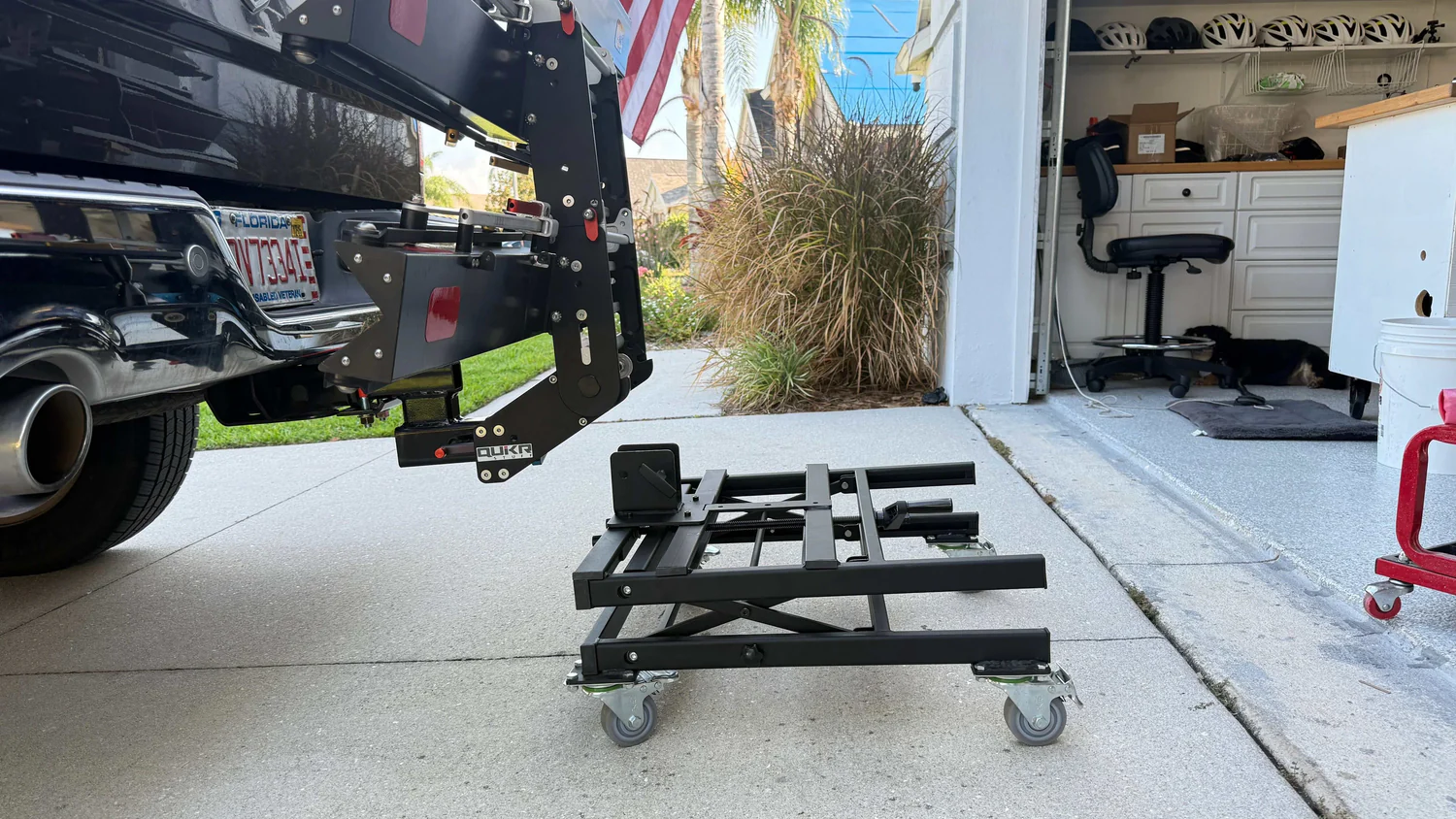

Instead of carrying the rack to your vehicle, place it on the Rack Lift and roll it into position. Use the hand crank to raise or lower the rack until the hitch tube lines up with your vehicle’s receiver, then guide the rack into place.

For anyone using a heavier e-bike or e-trike rack, this can make a two-person job much more manageable for one person.

Why We Like It

Many racks designed to carry heavier e-bikes and e-trikes are themselves extremely heavy. That can become a problem before the bike ever gets loaded.

The Rack Lift supports the weight of the rack while you:

• Roll it to and from your vehicle
• Adjust it to the correct hitch height
• Align it with the receiver
• Remove it from the vehicle
• Move it around your garage
• Store the rack upright and supported when it isn’t in use

Key Features

125 lb. Weight Capacity
Designed to support hitch racks weighing up to 125 lbs.

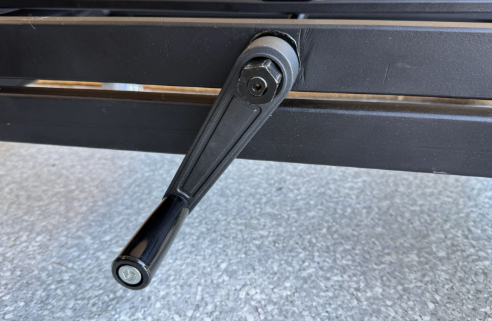

Hand-Crank Height Adjustment
Raise or lower the rack gradually so the hitch tube lines up with your vehicle’s receiver.

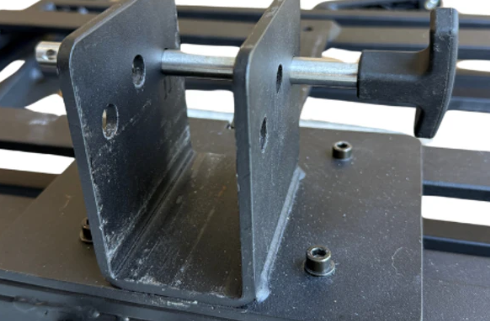

2" Open-Top Receiver
Makes it easier to position the hitch rack onto the lift and secure it before moving it.

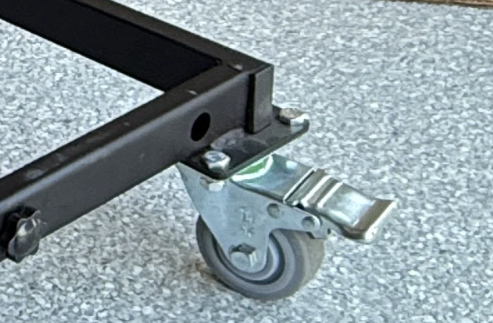

Four Locking Swivel Casters
Roll the rack where you need it, then lock the casters to keep the lift in position.

Optional Drill Assist
The crank mechanism includes a 3/4" socket attachment, allowing an electric drill to be used to raise or lower the rack.

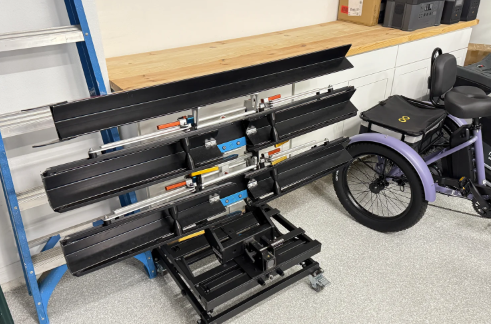

Built-In Rack Storage
Leave your hitch rack supported on the Rack Lift when it is off your vehicle instead of leaning a large, heavy rack against a garage wall.

Specifications

• Overall dimensions: 25" x 25"
• Rack Lift weight: 48 lbs.
• Maximum rack weight: 125 lbs.
• Standard hitch-height range: 10"–18"
• Height with optional 6" caster upgrade: 12.5"–21.5"
• Height measurement: Ground to center of hitch tube
• Rack connection: 2" open-top receiver
• Standard casters: Four 3" locking swivel casters
• Construction: Steel with powder-coated finish

Compatibility

The Rack Lift is designed for most 2" hitch-mounted e-bike and e-trike racks weighing less than 125 lbs.

Your rack should have a suitable flat underside and configuration that allows it to sit properly on the Rack Lift.

Check Your Vehicle Before Ordering

Measure from the ground to the center of your vehicle’s hitch receiver.

• Standard Rack Lift operating range: 10"–18"
• With optional 6" casters: 12.5"–21.5"

If your receiver falls outside the applicable range, additional hitch-height adjustment may be necessary.

Please contact Jesse’s e-Rides if you are unsure whether the Rack Lift will work with your rack or vehicle. We are happy to help you check compatibility before you order.

Important

The Rack Lift is designed to move, lift, position, install, remove, and store the hitch rack itself.

It is not designed to lift or transport e-bikes or e-trikes while they are loaded on the rack.
